PMC-220
Product Overview

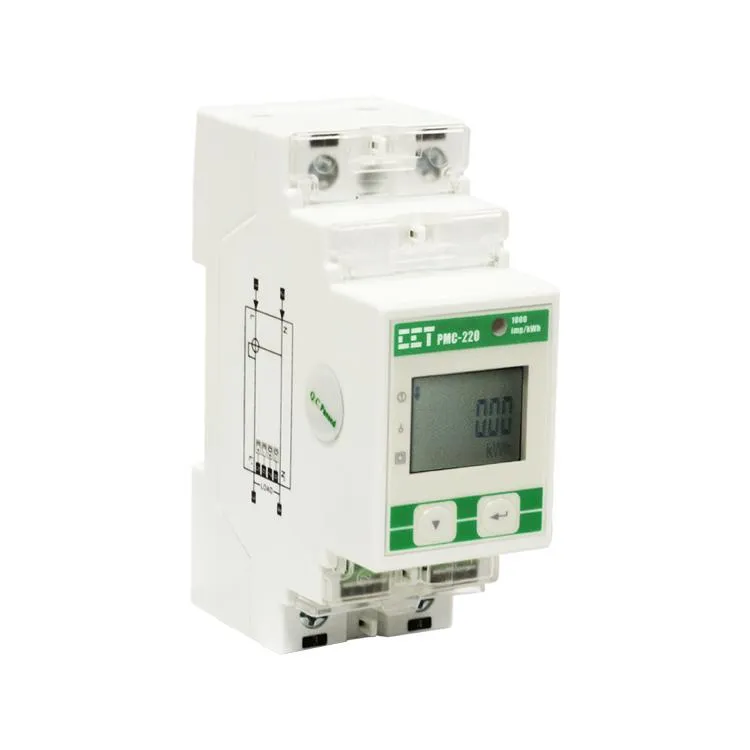

The PMC-220 Single-Phase Multifunction Meter is CET's latest offer for the low voltage energy metering market featuring DIN-Rail mount, compact construction, 63A direct connect input and high accuracy measurements. The PMC-220 complies with the IEC 62053-21: 2020 Class 0.5 kWh Accuracy Standard. In addition, the PMC-220 has received the Certificate of Approval from the National Measurement Institute (NMI) of Australia and been verified by UL with reference to NMI M6-1 Electricity Meters, Part 1: Metrological and Technical Requirements. With the standard RS-485 port and Modbus RTU protocol, the PMC-220 becomes a vital component of an intelligent, multifunction monitoring solution for any Energy Management Systems.
Features
  • Low-Cost Single-Phase Multifunction Meter
  • IEC 62053-21:2020 Class 0.5 (63A Direct Input)
  • NMI M6-1 Class 1

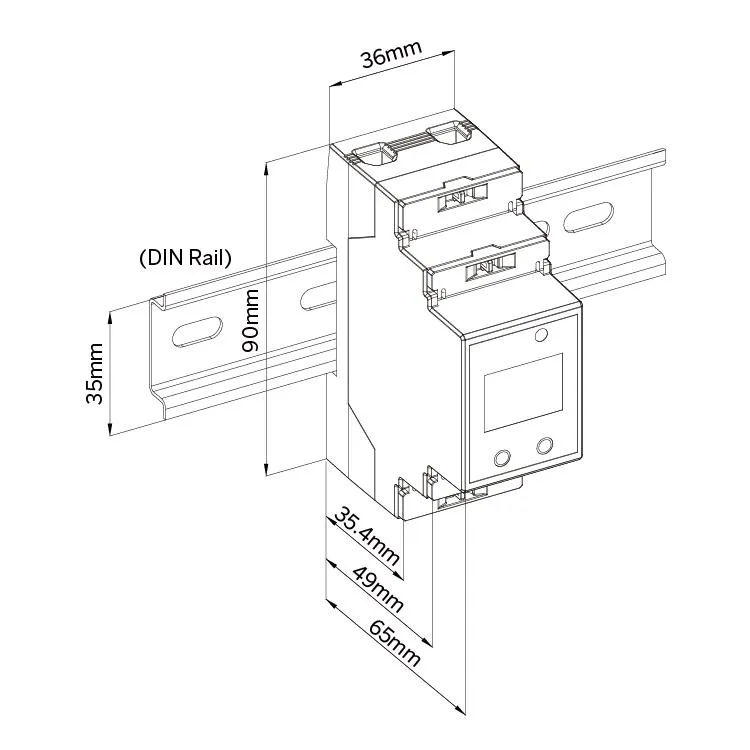

  • 35mm DIN Rail, 36x65x90mm

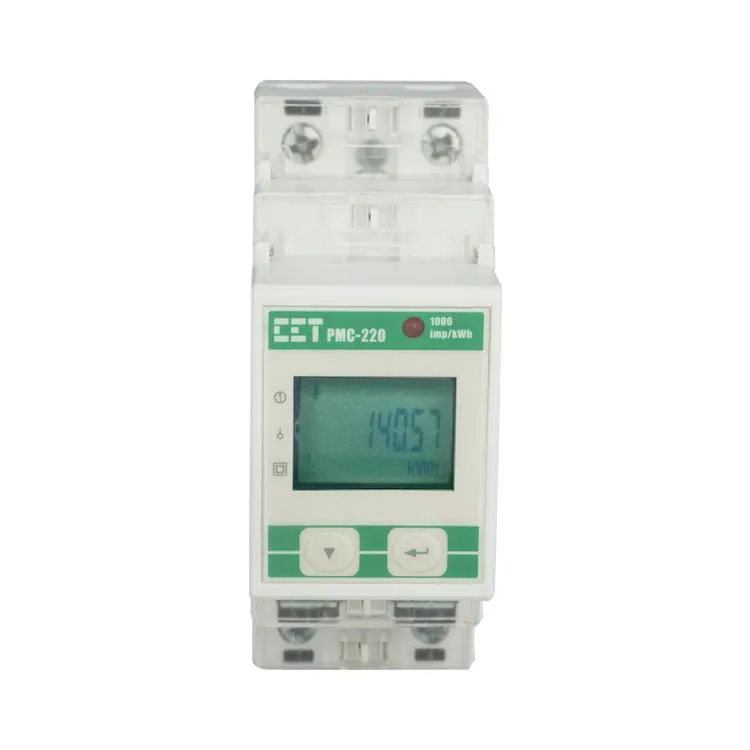

  • 6½ Digit B&W LCD Display
  • Modbus RTU
  • 1xRS-485
  • 1xSS Pulse Output
