PMC-550D
Product Overview

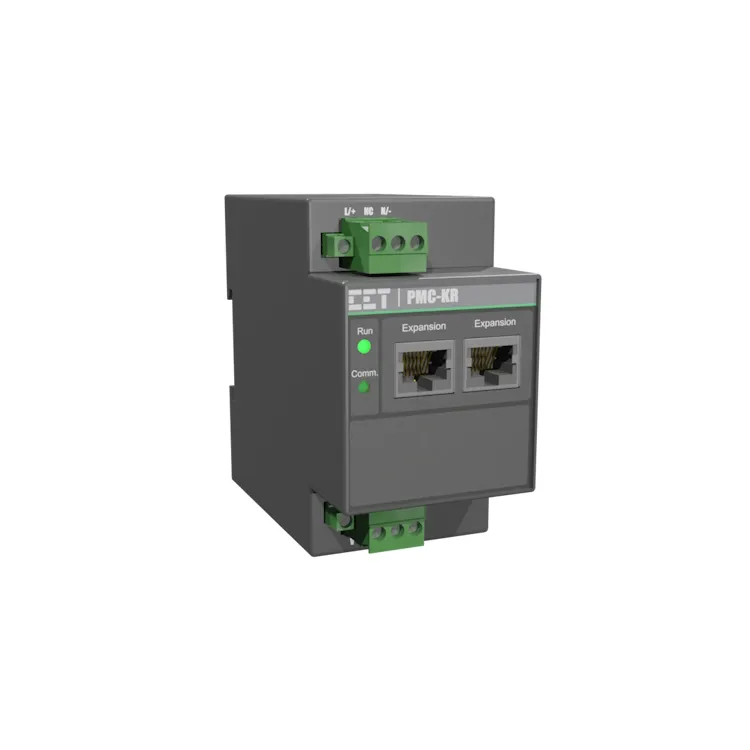

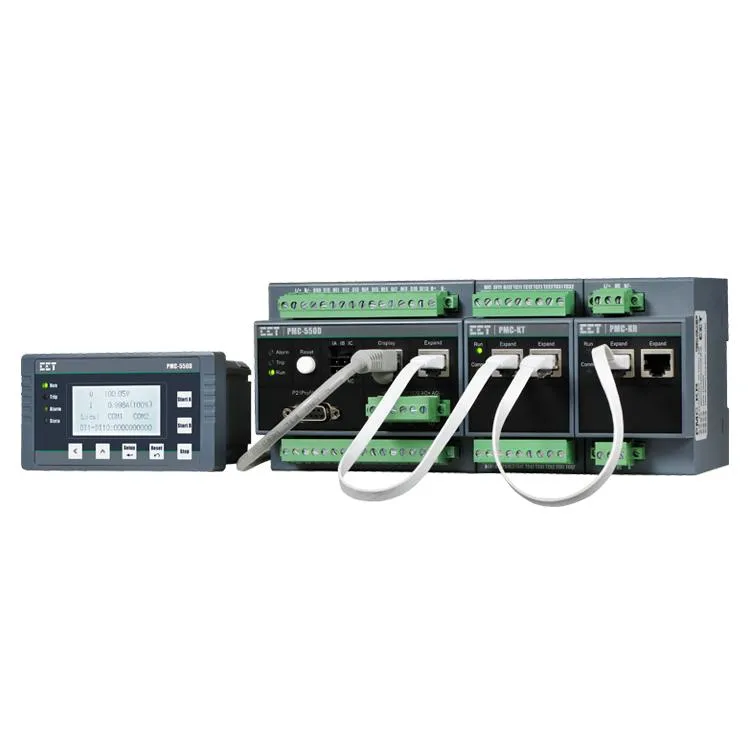

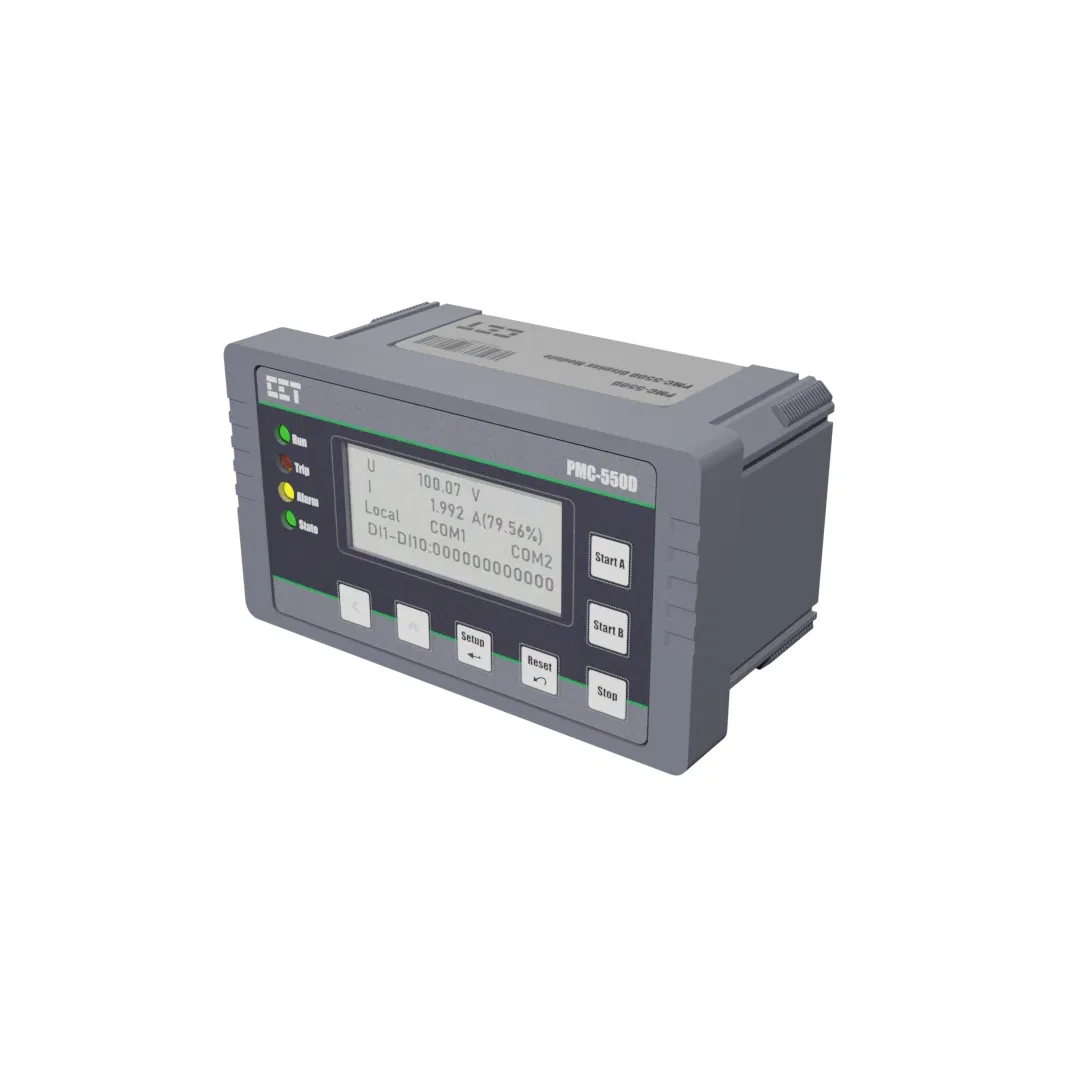

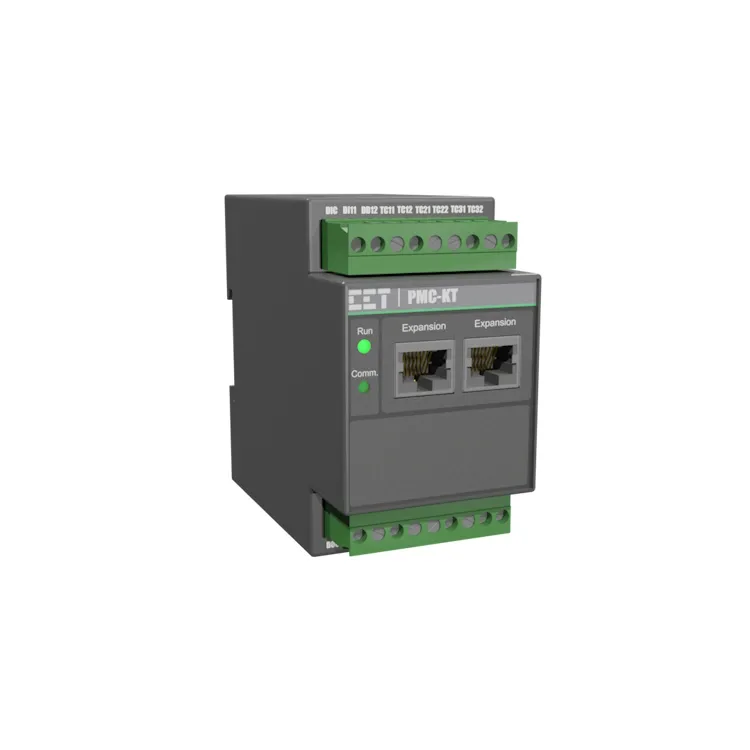

The PMC-550D Motor Protection Relay seamlessly integrates motor protection, control, temperature monitoring, and insulation monitoring with a modular design. Featuring extensive I/O options, including 10xDI, 5xDO, 2xRS-485 ports, 1x Analog Output, and 1x Residual Current Input, the relay offers flexibility and expandability, its modular design allows easy expansion, connecting a standalone HMI module for monitoring and control, a PMC-KT module for additional 6xNTC, 2xDI, and 1xDO for temperature monitoring and I/O control, and a PMC-KR module for ground fault insulation monitoring. The relay supports Modbus RTU/PROFIBUS, with PROFIBUS-DP available as an option. Equipped with a robust power supply, it ensures uninterrupted operation for 30 seconds during power interruptions. These versatile features make the relay suitable for diverse industrial needs.
Features
• Direct-On-Line Start
• Forward-Reverse Start
• Two-Speed Start
• Reduce-Voltage Start (including Star-Delta Start, Auto-Transformer Start and Resistance Start)
• Electric Fault Protection: Short Circuit, Ground Fault, Residual Current, LOP, Negative Sequence, MTA Failure, Insulation Resistance, Thermal Resistance (PTC or NTC), Overvoltage, Undervoltage, Imbalance, Phase Reversal, etc.
• Mechanical Protection: Jam, Long Start, Thermal Overload, Overload, Under Power, Interlock, tE Time, CB Failure, Thermo., Block When Start
• Motor Control
• Fundamental Metering
• RMS Metering
• Harmonic Metering
• Motor Monitoring and Event Logs
• Insulation Monitoring
• Programmable Logic
Please discover more in the catalogue or datasheet.
